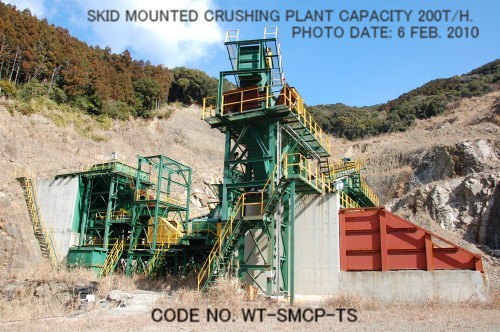

CODE NO. WT-SMCP-TS OF SKID MOUNTED CRUSHING PLANT CAPACITY 200T/H.
WE CAN SUPPLY
CODE NO. WT-SMCP-TS OF SKID MOUNTED CRUSHING PLANT CAPACITY 200T/H.
DATE OF PHOTOS: 6 FEBRUARY, 2010.

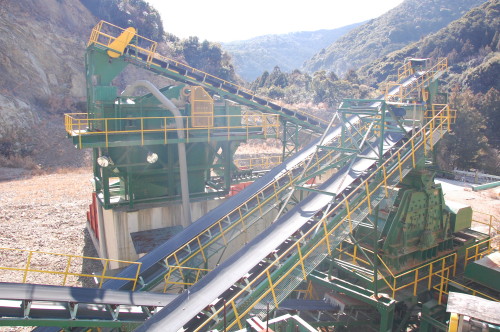

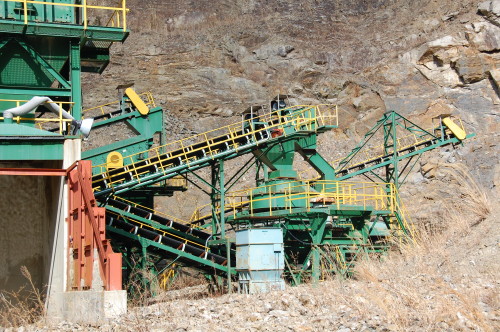

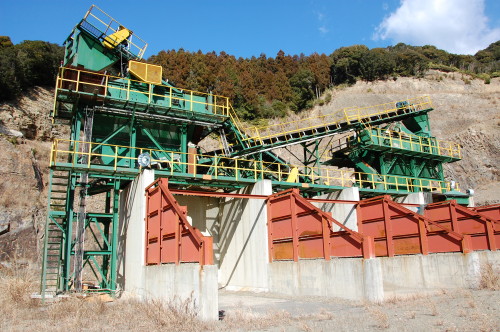

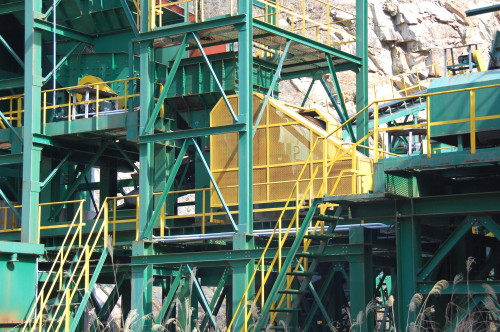

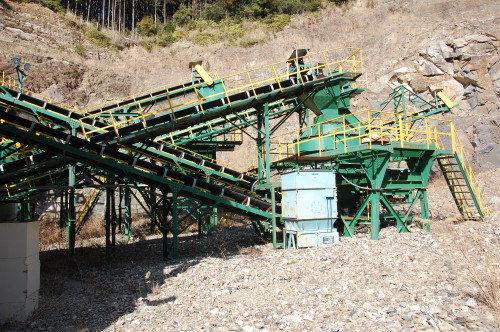

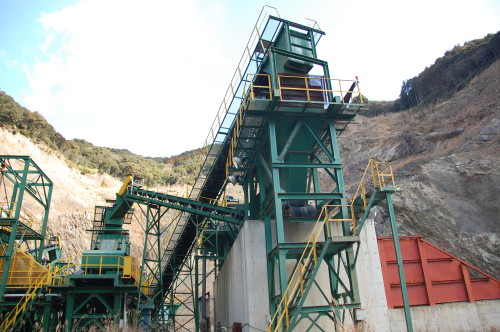

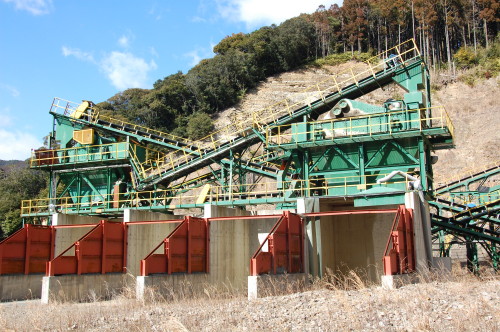

*CRUSHING PLANT CONSISTS OF

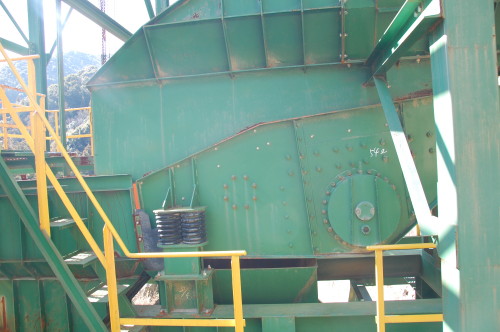

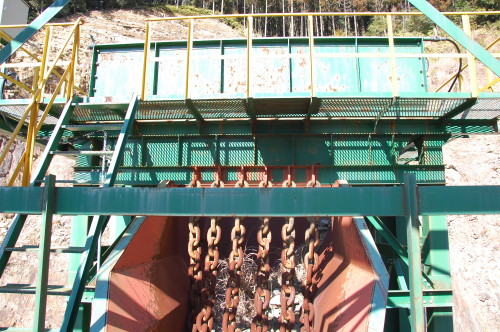

"FURUKAWA" 1500MM X 3600MM (5' X 12') VIBRATING GRIIZZLY FEEDER WITH 15KW (200V) MOTOR

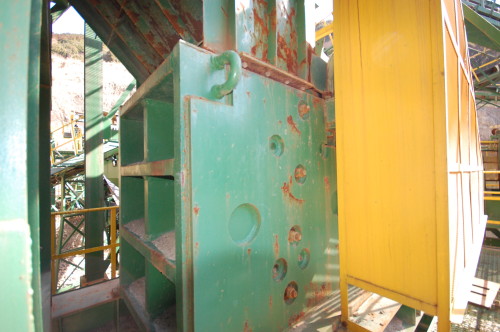

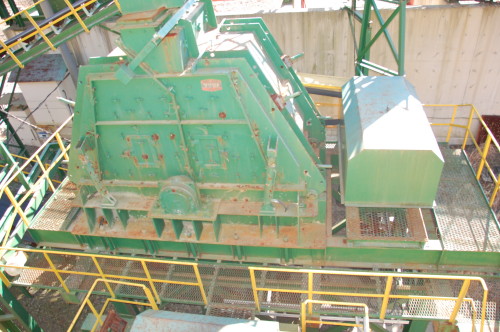

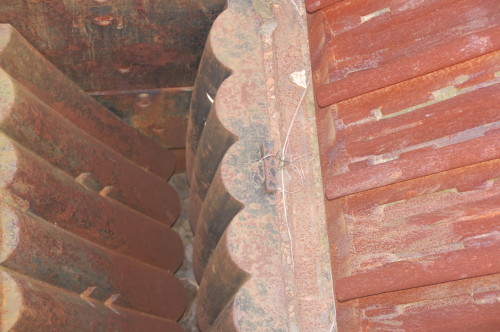

"KOBELCO" 42" X 30" SINGLE TOGGLE JAW CRUSHER WITH 95KW (3000V) MOTOR
"KINKI" 5' X 12' GRIZZLY SCREEN WITH 15KW (200V) MOTOR

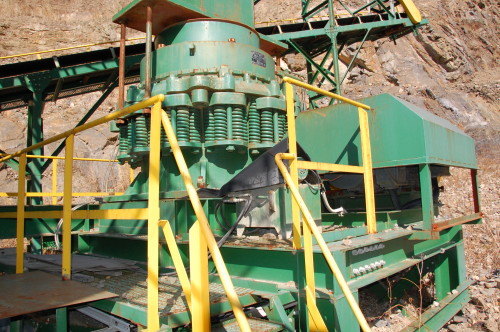

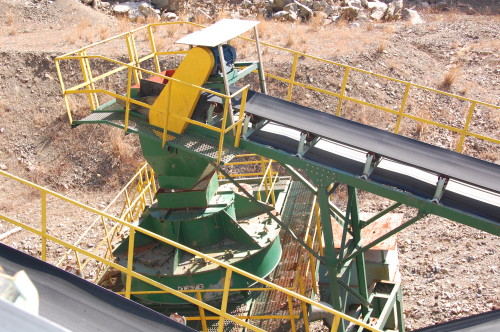

"OTSUKA" CC-1200 (1200MM X 190MM) CONE CRUSHER WITH 110KW (3000V) MOTOR

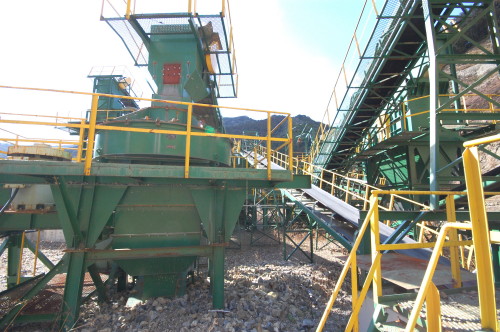

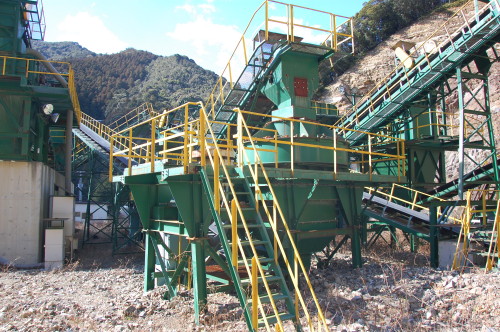

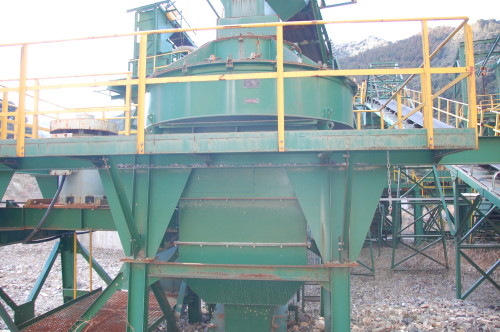

"KEMCO" BM-200N BARMAC IMPACTOR (IMPACT CRUSHER) WITH 250KW (3000V) MOTOR
"KINKI" 6' X 16' HORIZONTAL TYPE VIBRATING SCREEN WITH 22KW (200V) MOTOR
"NAKAYAMA" 6' X 20' HORIZONTAL TYPE VIBRATING SCREEN WITH 30KW (200V) MOTOR

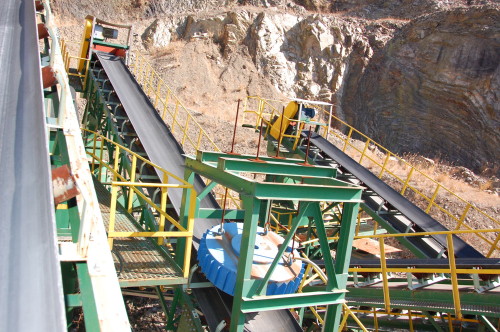

"CHINA" BRAND MAGNET SEPARATOR ROUND TYPE WITH 5KW (200V) MOTOR

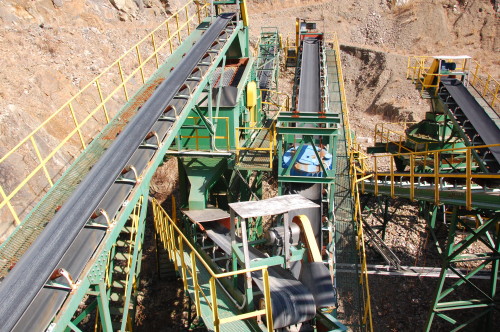

B-1 BELT CONVEYOR 600MM X 17.5M WITH 5.5KW (200V) MOTOR
B-2 BELT CONVEYOR 600MM X 20M WITH 5.5KW (200V) MOTOR
B-3 BELT CONVEYOR 600MM X 8.5M WITH 3.7KW (200V) MOTOR
B-4 BELT CONVEYOR 900MM X 25M WITH 15KW (200V) MOTOR
B-5 BELT CONVEYOR 900MM X 26M WITH 15KW (200V) MOTOR
B-6 BELT CONVEYOR 900MM X 21M WITH 15KW (200V) MOTOR
B-7 BELT CONVEYOR 900MM X 38.5M WITH 18.5KW (200V) MOTOR
B-8 BELT CONVEYOR 900MM X 23.5M WITH 15KW (200V) MOTOR
B-9 BELT CONVEYOR 600MM X 7M WITH 3.7KW (200V) MOTOR
B-10 BELT CONVEYOR 600MM X 11M WITH 3.7KW (200V) MOTOR

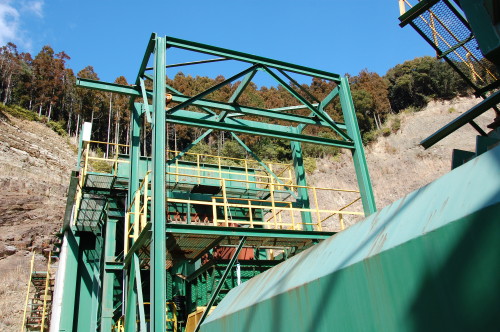

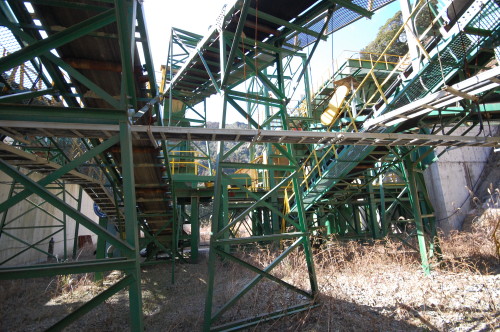

*HOPPER AND STEEL SUPPORTER
NO.1 FEED HOPPER AND STEEL SUPPORTER
NO.2 STEEL SUPPORTER FOR VIBRATING GRIZZLY FEEDER
NO.3 STEEL SUPPORTER FOR JAW CRUSHER, CONE CRUSHER AND IMPACTOR (IMPACT CRUSHER)
NO.4 STEEL SUPPORTER FOR VIBRATING GRIZZLY SCREEN AND OTHER VIBRATING SCREENS.
