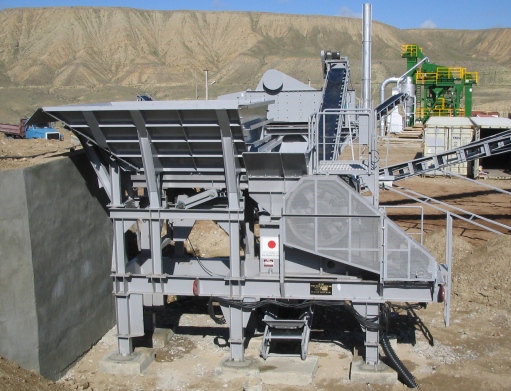

UNUSED (NEVER USED) KYC SEMI-PORTABLE TYPE STONE CRUSHING & SCREENING PLANT
WE CAN SUPPLY
UNUSED (NEVER USED) KYC SEMI-PORTABLE TYPE STONE CRUSHING & SCREENING PLANT

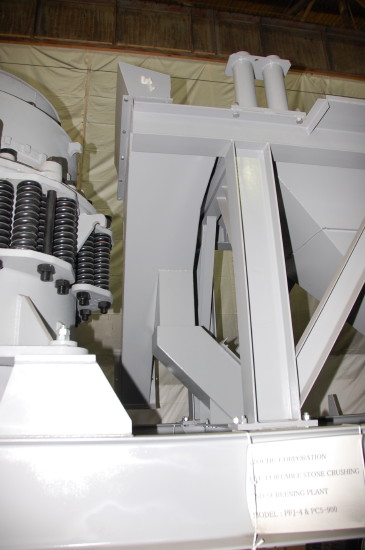

MODEL PFJ-4 (24" X 15" JAW CRUSHER) & PCS-900 (36" CONE CRUSHER) WITH THE RELATED ACCESSORIES
SUCH AS THE HOPPER, PLATE FEEDER, VIBRATING SCREEN,
MOTOR AND BELT CONVEYOR, ETC. EXCEPT THE GENERATOR. (CAPACITY: 30T/HOUR AT 20MM UNDER PRODUCTS).
MAIN SPECIFICATIONS

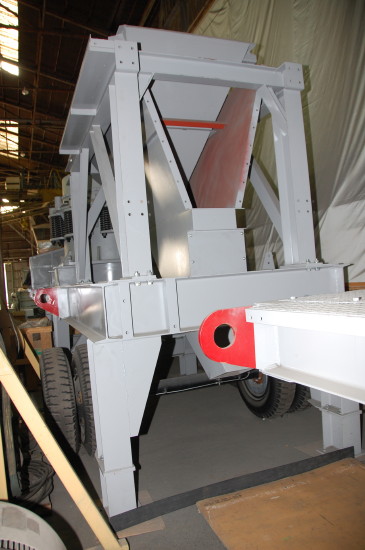

HOPPER CAPACITY 4.5M3.

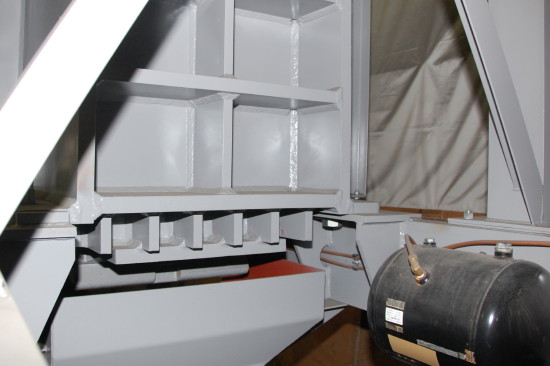

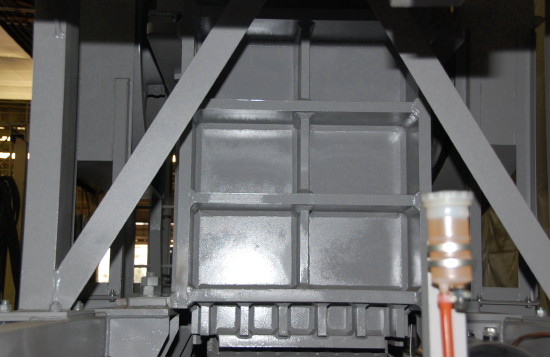

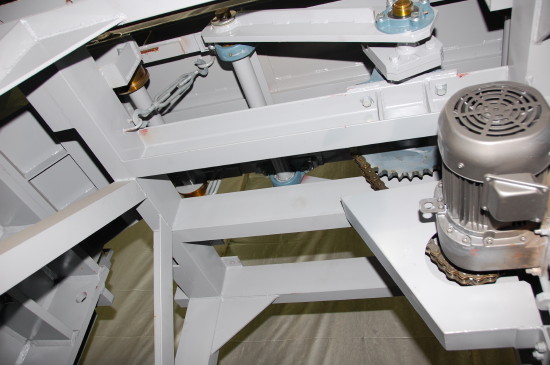

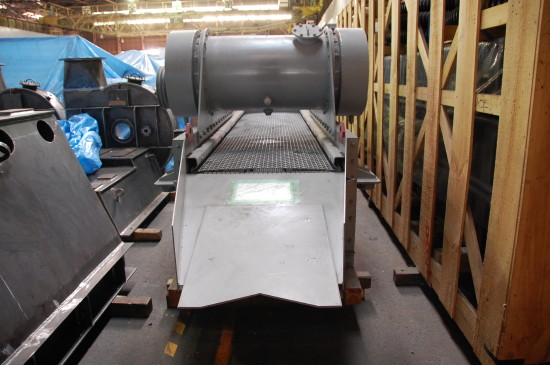

PLATE FEEDER WIDTH 600MM X LENGTH 1800MM WITH 2.2KW GEARED MOTOR.

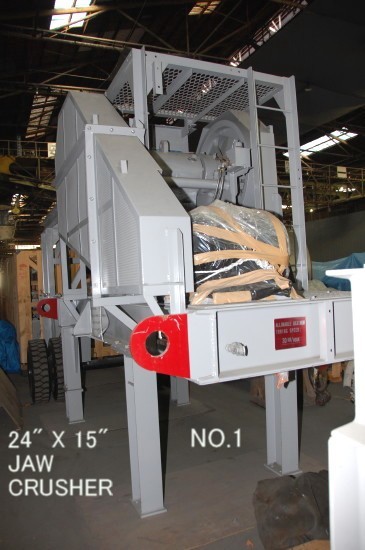

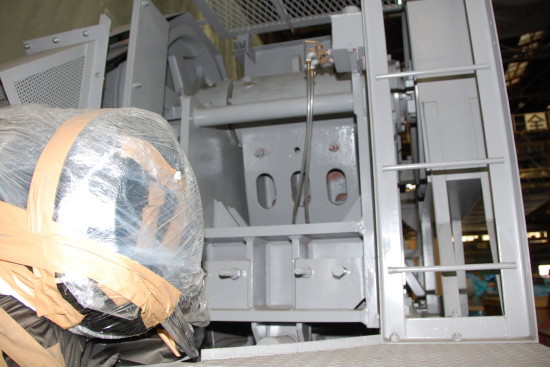

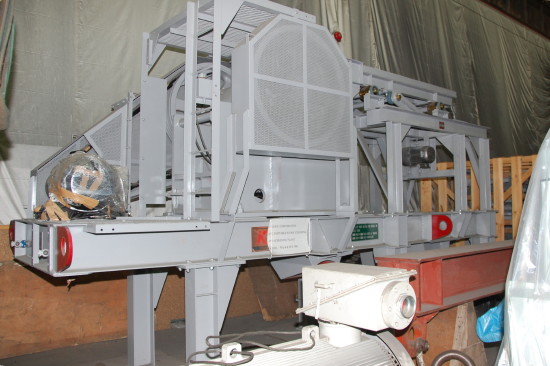

KYS-2415 (24" X 15") JAW CRUSHER CAPACITY 38T/H. TO 70T/H. WITH 37KW MOTOR.

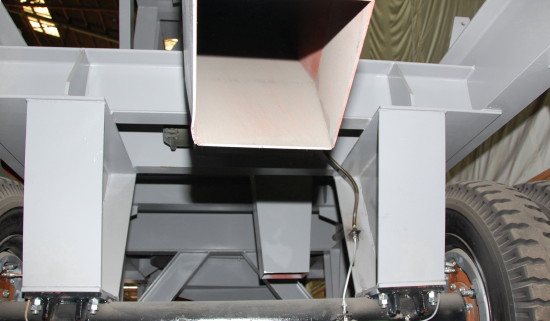

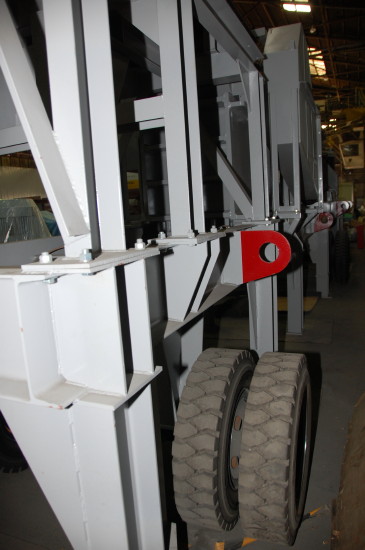

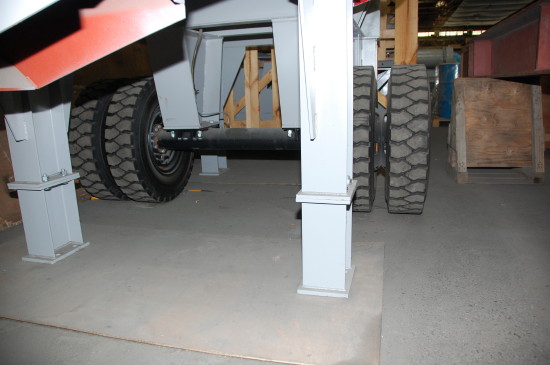

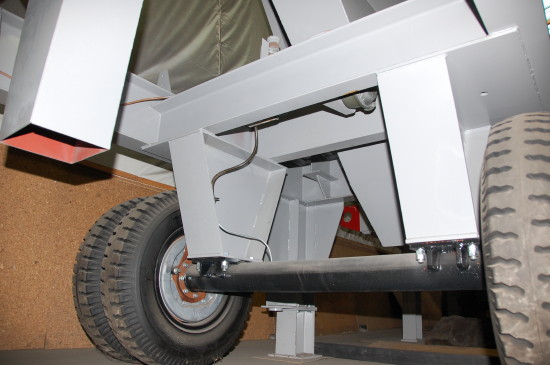

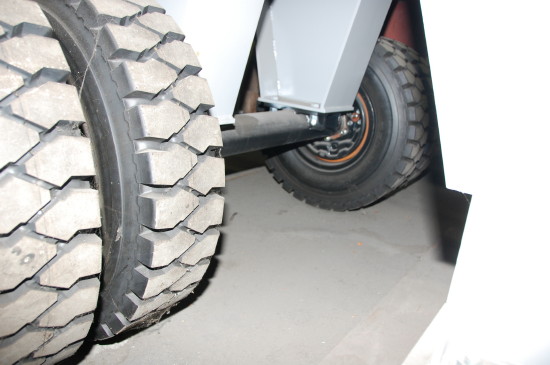

SEMI-TRAILER WITH REAR TIRE 7.50-16-10PRY (SINGLE AXLE DOUBLE TIRES) *AIR CONTROLLED BRAKE SYSTEM.

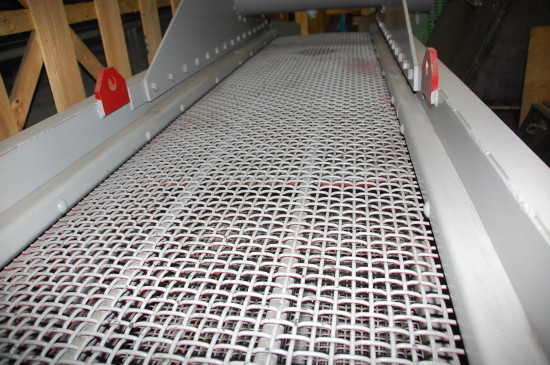

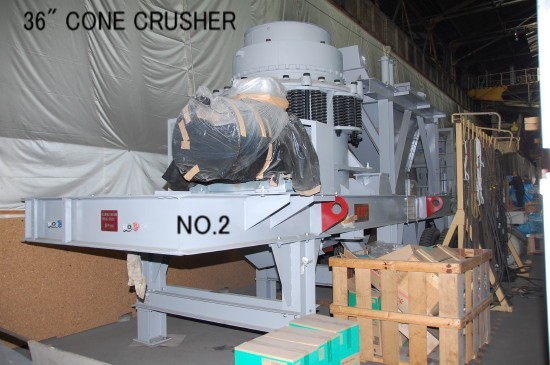

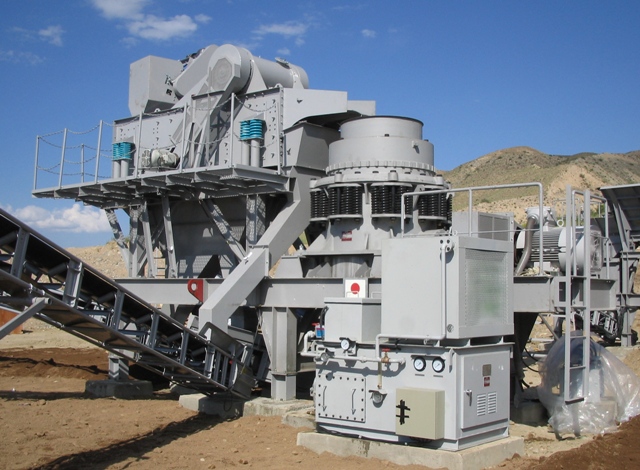

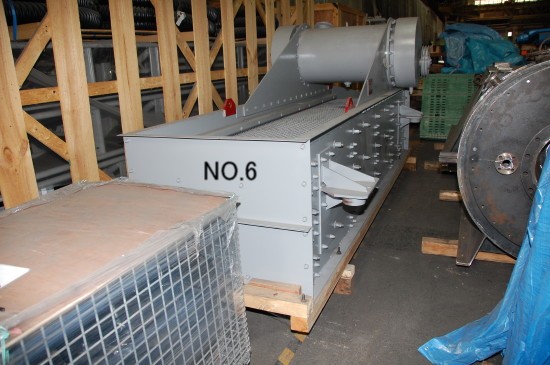

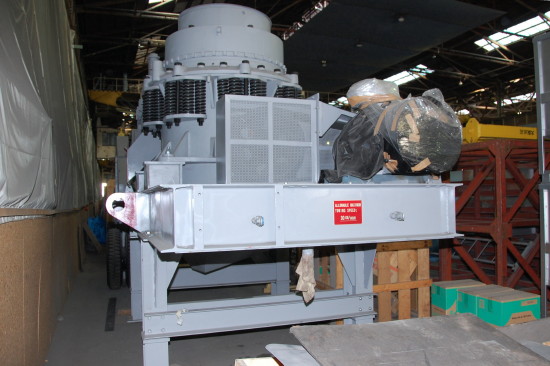

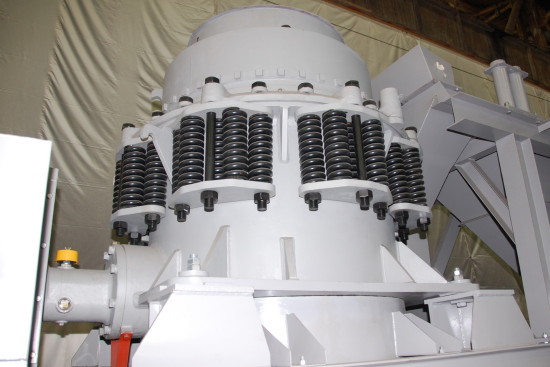

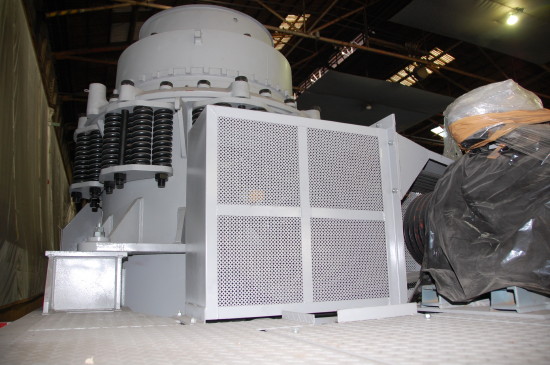

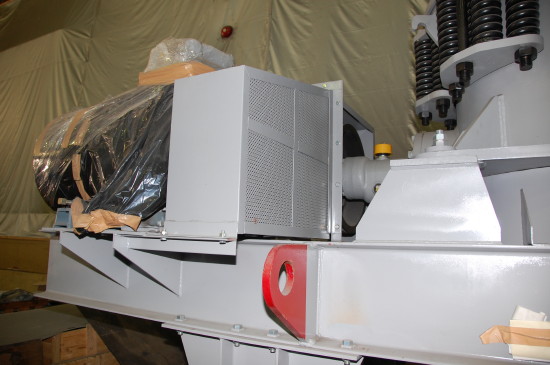

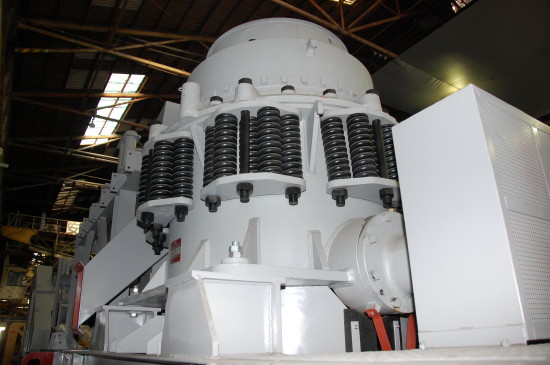

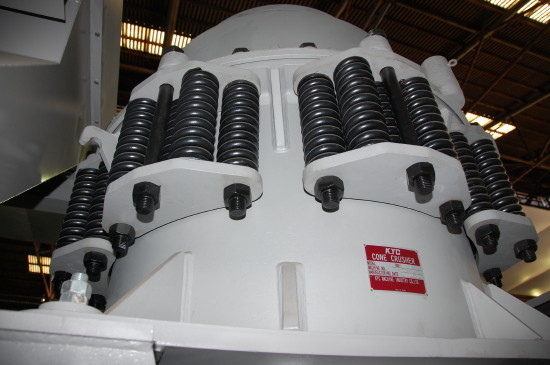

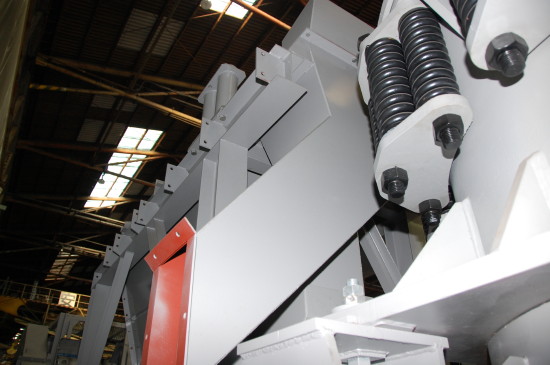

KYLS-3X12-3 DECKS (3' X 12') HORIZONTAL TYPE VIBRATING SCREEN WITH 7.5KW MOTOR.*WIRE MESH APERTURE: 20MM & 13MM & 5MM.KK-900F (900MM X FEED OPENING 105MM) CONE CRUSHER CAPACITY 37T/H. TO 80T/H. WITH 55KW MOTOR.

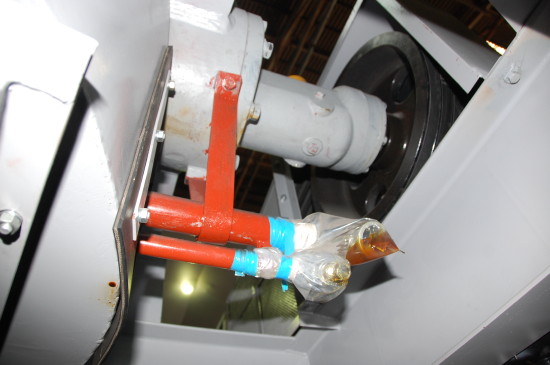

LUBRICATION OIL UNIT WITH AUTOMATIC SAFETY DEVICE AND 2.2KW OIL PUMP AND 1.5KW OIL COOLER.

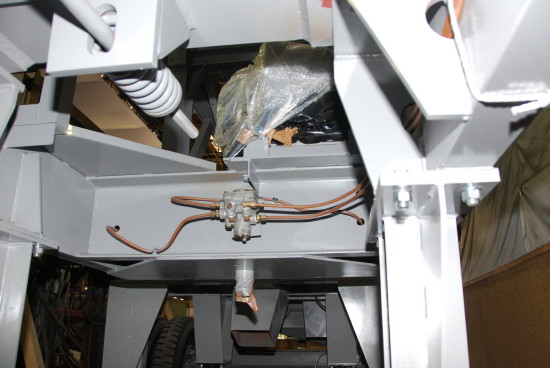

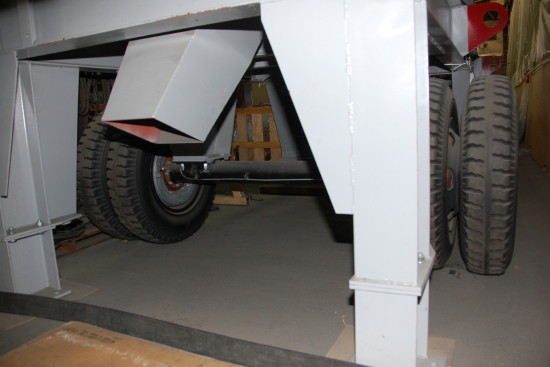

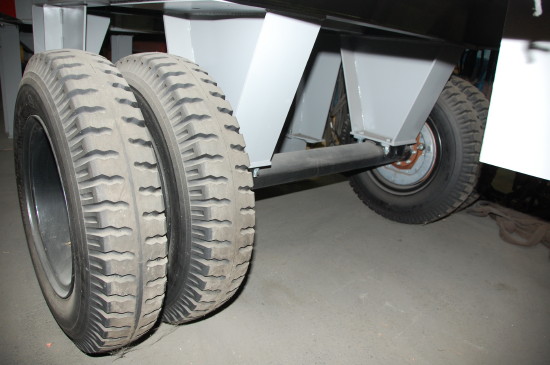

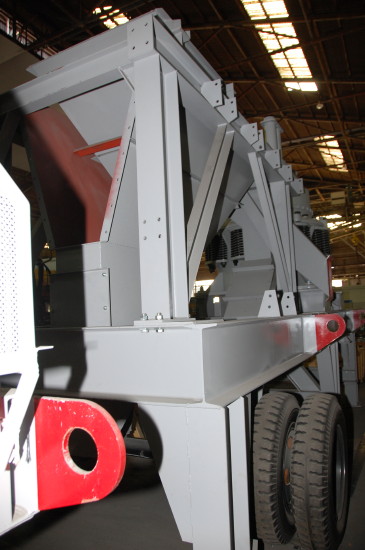

SEMI-TRAILER WITH REAR TIRE 8.25-20-12PRY (SINGLE AXLE DOUBLE TIRES) *AIR CONTROLLED BRAKE SYSTEM.
DELIVERY BELT CONVEYOR 500MM X 15 METER WITH 3.7KW GEARED MOTOR (1 UNIT).*ACCESSORIES: FIXED LEG, SKIRT HOPPER & DISCHARGE CHUTE.RETURN BELT CONVEYOR 400MM X 13 METER WITH 1.5KW MOTORIZED PULLEY (1 UNIT).*ACCESSORIES: FIXED LEG, SKIRT HOPPER & DISCHARGE CHUTE.PRODUCT BELT CONVEYOR 400MM X 13 METER WITH 1.5KW MOTORIZED PULLEY (3 UNITS).*ACCESSORIES: FIXED LEG & SKIRT HOPPER.CONTROL PANEL FOR OUTSIDE USE (RAIN AND DUST PROOF).
REMARKS:
1). MOTOR VOLTAGE: 380V/50HZ/3PHASE.
2). OUR SELLING PRICE INCLUDES ONE LOT OF ANCHOR BOLT, NUTS AND ELECTRIC CABLE INSIDE OF THE PLANT
AND ONE SET OF THE STANDARD TOOLS WITH TOOL BOX FOR MAINTENANCE.
PRODUCTS SIZE (3 KINDS)
20MM TO 13MM ABOUT 12T/H. TO 14T/H.
13MM TO 5MM ABOUT 10T/H. TO 12T/H.
5MM TO 0MM ABOUT 5T/H. TO 7T/H.
THE ABOVE CRUSHING CAPACITY IS BASED ON THE PRESENT WIRE MESH APERTURE: 20MM & 13MM & 5MM).
IT IS POSSIBLE TO PRODUCE MORE QUANTITY OF STONE IF CHANGE THE WIRE MESH OF BIGGER APERTURE.
REQUIRED GENERATOR CAPACITY: 200KVA/50HZ/3PHASE.
